What Spare Parts Does a Slurry Pump Mainly Consist of?
Explore the critical components of slurry pumps in our comprehensive guide, featuring essential spare parts like impellers, casings, and seals. Dive into the functions and significance of each part to maximize efficiency and performance. Enhance your understanding and ensure seamless operations with quality spare parts.
In many fields of industrial production, the slurry pump, like a tireless "strongman", shoulders the important task of conveying and processing various slurry media. The efficient and stable operation of this equipment is inseparable from the collaborative work of its internally designed spare parts. So, what spare parts does a slurry pump mainly consist of? Next, we will uncover the "mysteries" of thesecontactone by one, and deeply understand their roles and functions in the operation of the slurry pump.

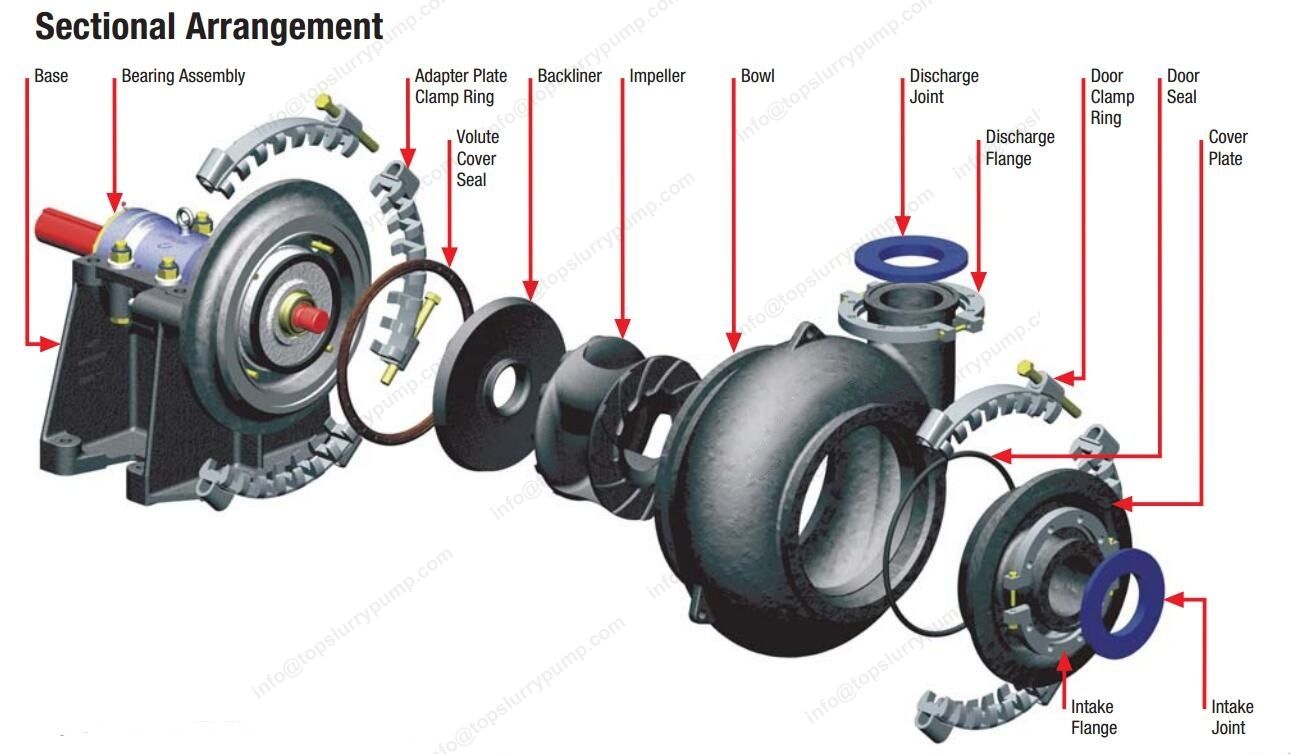

Flow Components: The "Core Channel" for Slurry Flow
Flow components are the key parts of a slurry pump that directly contact and guide the slurry medium, acting like a carefully designed "channel" to ensure the slurry can smoothly pass through the pump body while achieving energy conversion.

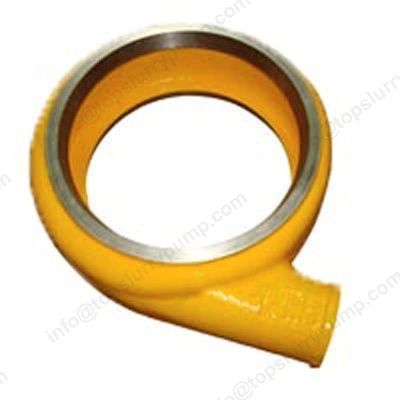

Volute: The "Wise Guardian" of Protection and Conversion
The volute is a uniquely shaped component in the flow parts, resembling a snail's shell with a spiral-shaped gradual expansion. This seemingly simple structure contains ingenious design principles. The volute mainly plays two important roles: on the one hand, it is like a loyal "guardian", tightly wrapping the impeller to provide a safe and stable environment for the impeller's rotation, protecting the impeller from direct impact and wear by solid particles in the slurry; on the other hand, it is an excellent "energy conversion master". When the impeller rotates at high speed to throw out the liquid, the volute can effectively collect the liquid with kinetic energy and gradually convert the kinetic energy of the liquid into static pressure energy through its expanding flow channel, enabling the liquid to be transported at a higher pressure. The volute is usually made of materials with good wear resistance to cope with the erosion and wear of the slurry medium, ensuring it maintains good performance during long-term operation.

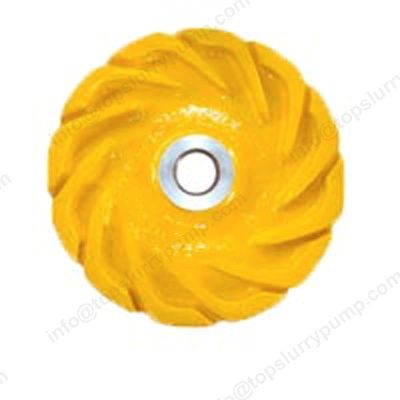

Impeller: The "Power Source" of Energy Transfer
The impeller can be regarded as the "heart" of the slurry pump, serving as the key component that directly transfers the mechanical energy input from the outside to the liquid. The impeller is typically composed of several blades and a hub connecting the blades, with the shape and arrangement of the blades carefully designed to ensure efficient work on the liquid. When the impeller rotates at high speed driven by the motor, the blades drive the liquid to rotate together. Due to centrifugal force, the liquid is thrown from the center of the impeller to the edge, thus obtaining kinetic energy and static pressure energy. The performance of the impeller directly affects important parameters of the slurry pump such as flow rate, head, and efficiency. To adapt to slurry media with different properties, the impeller is also made of various materials. For conveying slurries containing a large number of solid particles, materials with stronger wear resistance are usually selected to manufacture the impeller, extending its service life.

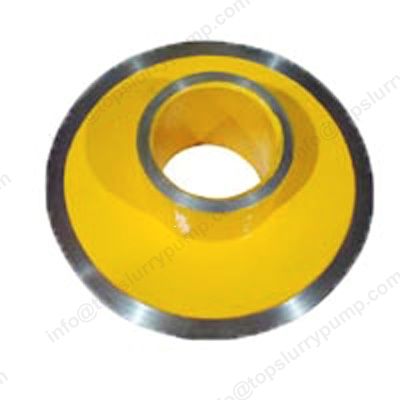

Front Guard Plate: The "Pioneer" Guiding the Liquid
The front guard plate is located in front of the impeller and connected to the inlet pipeline, mainly ensuring the smooth entry of liquid into the impeller. The surface of the front guard plate is usually designed to be smooth, which can reduce the resistance and energy loss when the liquid enters the impeller, allowing the liquid to enter the impeller at a relatively uniform flow rate and direction, thereby improving the pump's working efficiency. Meanwhile, the front guard plate also plays a role in protecting the front end of the impeller to a certain extent, preventing solid particles in the slurry from directly impacting the front end of the impeller and reducing impeller wear.

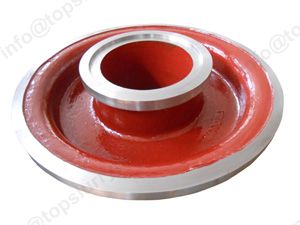

Rear Guard Plate: The "Builder" Forming the Flow Channel
The rear guard plate connects the pump shaft and the impeller, forming a semi-closed flow channel together with the impeller, front guard plate, and other components. The design of this semi-closed flow channel is crucial for the smooth flow of the slurry, as it can guide the slurry to flow orderly between the impeller and the pump body, avoiding liquid turbulence and backflow, thus ensuring the normal operation of the slurry pump. The rear guard plate also needs to have certain wear resistance to withstand the erosion of the slurry.
Bracket Part: The "Solid Backbone" of Support and Fixation
The bracket part, also known as the suspension, is usually made of gray iron. Gray iron has good casting performance and certain strength, meeting the usage requirements of the bracket part. The bracket part mainly plays the role of supporting and fixing the pump shaft, bearing components, and other parts in the slurry pump, acting like a solid "backbone" to ensure the stable operation of these rotating parts. Since the bracket part does not directly contact the slurry medium, it is not a vulnerable part. Under normal use, its technical requirements are relatively low, and it does not need to be replaced or maintained frequently.
Base: The "Cornerstone" of Stable Support
The base is the basic support component of the slurry pump, serving as the "cornerstone" of the building, providing stable support for the entire slurry pump. The manufacturing method of the base is determined according to the power motor equipped with the slurry pump. For motors with smaller power, the base is usually made by welding and cutting iron plates; for motors with larger power, the base needs to be cast according to detailed drawings to ensure it has sufficient strength and stability to bear the weight of the pump and motor as well as the vibration generated during operation. A stable base is crucial for the smooth operation of the slurry pump, as it can prevent the pump from shaking and displacing during operation, thereby reducing equipment wear and the possibility of failures.

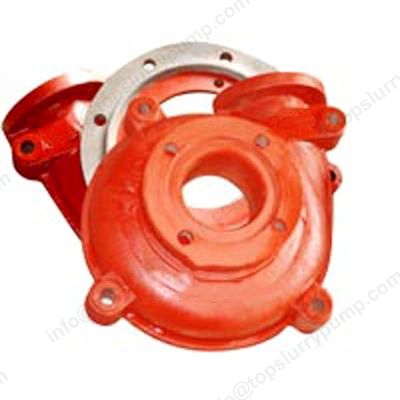

Pump Body and Pump Cover: The "Sturdy Shell" Protecting the Interior
In double-shell slurry pumps, the pump body and pump cover play an important role in protecting the flow components. They are like a sturdy "shell", wrapping the flow components to keep them from being affected and damaged by external factors. Compared with the flow components, the pump body and pump cover are not vulnerable parts. Their structures are relatively strong and can withstand certain pressure and wear. The design of the pump body and pump cover also considers the convenience of installation and maintenance. When it is necessary to inspect or replace the flow components, the pump cover can be easily opened to expose the internal flow components, greatly improving the efficiency of equipment maintenance.
Shaft Seal Device: The "Seal Guardian" Preventing Leakage
The shaft seal device is an important component in the slurry pump used to prevent liquid from leaking through the gap between the pump shaft and the pump shell. It is like a "seal guardian", always safeguarding the pump's sealing performance to ensure the slurry pump can operate normally and safely. According to different usage scenarios and medium characteristics, the shaft seal device mainly has the following types:
Packing Seal: The "Practical User" with a Simple Structure
The packing seal is a relatively traditional sealing method with a simple structure, mainly composed of a packing box, packing, a gland, and other components. During installation, the packing is filled into the packing box, and the gland's pressing force makes the packing closely contact the pump shaft to achieve sealing. The advantage of the packing seal is its convenient maintenance. When the packing is worn and causes leakage, the packing can be replaced in a timely manner, and the operation is relatively simple. However, the packing seal requires the use of shaft seal water, which cools and lubricates the packing and pump shaft to reduce friction and wear between them. During use, it is necessary to ensure a stable supply of shaft seal water; otherwise, the sealing effect will be affected.
Auxiliary Impeller Seal: The "Expert" Coping with Particles
The auxiliary impeller seal is suitable for conveying media containing more particles, featuring advantages such as no need for shaft seal water, no dilution of the slurry, and good sealing effect. The working principle of the auxiliary impeller seal is to set an auxiliary impeller behind the impeller. When the impeller rotates, the auxiliary impeller also rotates, generating a certain centrifugal force to form a pressure field opposite to the medium pressure, thereby preventing the medium from leaking from the shaft seal. This sealing method does not require an additional shaft seal water supply, avoiding the dilution of the slurry by the shaft seal water, and is particularly suitable for use in some working conditions with high requirements for slurry concentration. At the same time, due to the absence of shaft seal water, related pipelines and equipment are reduced, lowering the equipment maintenance cost.

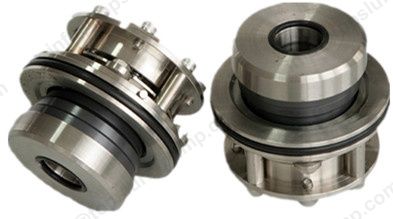

Mechanical Seal: The "Outstanding Performer" with High Efficiency and Reliability
The mechanical seal is a sealing method that achieves sealing through the relative movement of the end face between the moving ring installed on the shaft and the stationary ring fixed on the pump shell. The mechanical seal has the advantages of less leakage, reliable operation, and long service life, being widely used in many occasions with high sealing requirements. The moving ring and stationary ring are usually made of materials with good wear resistance, and their sealing end faces are precisely processed to maintain good sealing performance during relative movement. Although the structure of the mechanical seal is more complex than that of the packing seal, its sealing effect is more stable and reliable, and it does not require frequent maintenance and replacement, greatly improving the equipment's operation efficiency and reliability.
Transmission Part: The "Link" Transmitting Power
The transmission part is the "link" connecting the motor and the pump impeller, including components such as the bracket and bearing assembly. The bearing assembly is the core component of the transmission part. Depending on the transmitted power, heavy-duty single-row or double-row tapered roller bearings and cylindrical roller bearings are selected for the bearings. These bearings have good load-carrying capacity, capable of withstanding the maximum axial and radial loads generated by the pump during operation, ensuring the pump shaft and impeller can rotate smoothly. The role of the transmission part is to reliably transmit the power output by the motor to the impeller, enabling the impeller to rotate at high speed, thus achieving the conveying and processing of the slurry medium. The good operation of the bearings is crucial to the reliability of the transmission part. During use, the bearings need to be lubricated and inspected regularly to ensure their good performance.
In summary, a slurry pump mainly consists of flow components, bracket parts, a base, a pump body and pump cover, a shaft seal device, and a transmission part. These spare parts each play a unique role, cooperating and working together to form the basic structure of the slurry pump, enabling it to effectively handle various slurry media and play an indispensable role in industrial production. Understanding the composition of slurry pump spare parts is of great significance for the correct use, maintenance, and repair of slurry pumps, helping to improve equipment operation efficiency and service life and reduce production costs.
